Virtual Machine Environments with XNET

You can install Desigo CC on virtual machines. The physical stations are connected to the fire networks.

The Desigo CC virtual stations in the upper section of the following diagram can be any of the stations shown in the other architecture diagrams.
Note however that there must be one physical computer per virtual machine.

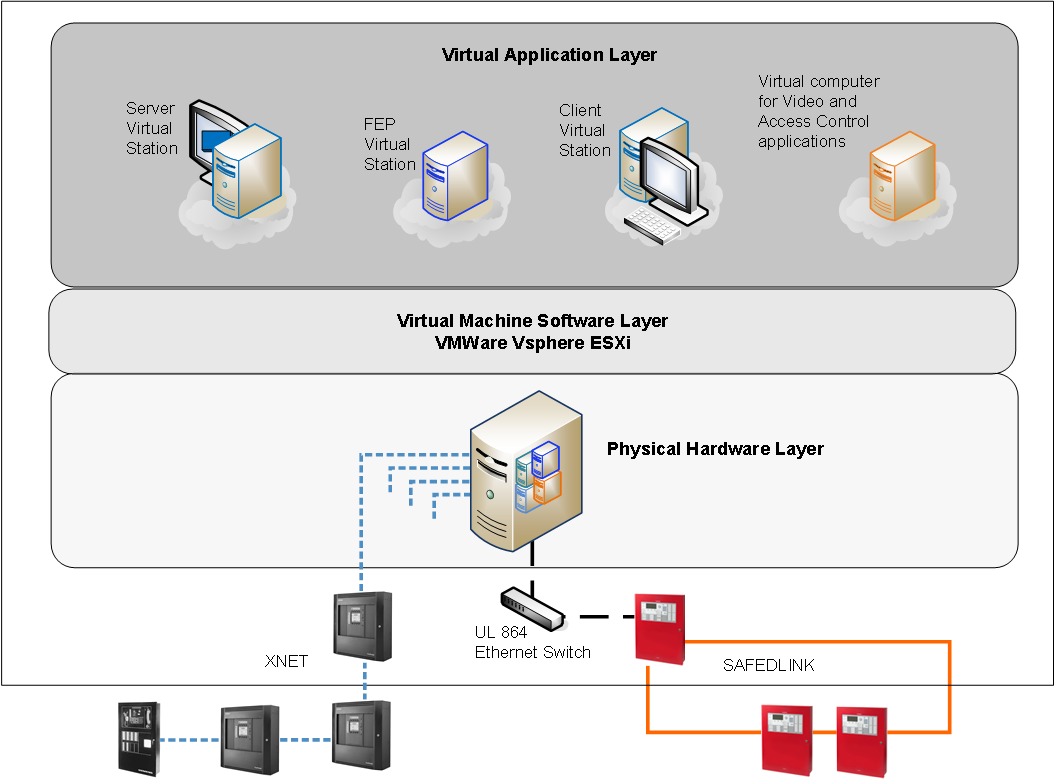

Virtual Machine Environment for a Hybrid XNET/FS20 Fire System

	Units installed in the same room within 20 ft (UL) or 18 m (ULC) from each other
	Ethernet wiring within 20 ft (UL) or 18 m (ULC) in UL/ULC listed conduits
	XNET: Style 4/Class B or Style 7/Class X RS-485

NOTE: Style 4/Class B = DCLB; Style 7/Class X = DCLC
